Steam output:
Steam volume: 0.5t/h-20t/h
Steam pressure: 0.7mpa-2.5mpa (optional as required)
Steam temperature: 0 ℃ - 226 ℃
Fuel: coal, anthracite, bituminous coal, lignite, etc.
Hot water output:

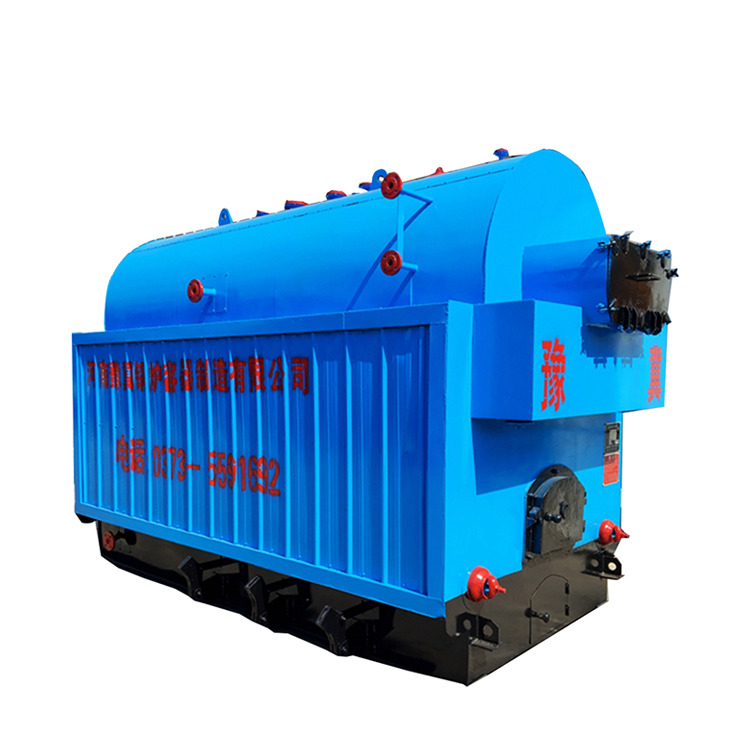

| DZH Steam Boiler | |||||||
| Model |
Rated evaporation (t/h) |
Rated pressure (MPa) |
Steam temperature (℃) |
thermal efficiency (%) |
Fuel consumption (kg/h) |
Size L×W×H (m) |
Weight (t) |
| DZH 1-0.7/1.0-AII | 1 | 0.7/1.0 | 193/204 | ≥83 | 176.6 | 4.3×1.9×2.9 | 13.6 |
| DZH 2-1.0/1.25-AII | 2 | 1.0/1.25 | 193/204 | ≥83 | 352.3 | 5.14×2.5×3.1 | 18 |
| DZH 3-1.25/1.6-AII | 3 | 1.25/1.6 | 193/204 | ≥83 | 522.5 | 5.63×2.7×3.3 | 23 |
| DZH 4-1.25/1.6-AII | 4 | 1.25/1.6 | 193/204 | ≥83 | 697 | 5.92×2.7×3.5 | 25.3 |
| DZH 6-1.25/1.6-AII | 6 | 1.25/1.6 | 193/204 | ≥83 | 1044 | 6.2×3.0×3.58 | 31 |
| DZH 8-1.25/1.6-AII | 8 | 1.25/1.6 | 193/204 | ≥83 | 1396 | 6.8×3.4×3.6 | 34 |
| DZH 10-1.25/1.6-AII | 10 | 1.25/1.6 | 193/204 | ≥83 | 1744 | 7.5×3.4×3.7 | 39 |
| DZH Hot Water Boiler | |||||||
| Model |
Rated power (mw) |
Rated pressure (MPa) |
thermal efficiency (%) | Fuel consumption (kg/h) |
Water supply temperature (℃) |
Return water temperature (℃) |
Weight (t) |
| DZH0.7-0.7/95/70 | 0.7 | 0.7 | ≥83 | 174.3 | 95 | 70 | 13.6 |
| DZH1.4-1.0/95/70 | 1.4 | 1 | ≥83 | 348.6 | 95 | 70 | 18 |
| DZH2.1-1.0/95/70 | 2.1 | 1 | ≥83 | 517 | 95 | 70 | 23 |
| DZH2.8-1.0/95/70 | 2.8 | 1 | ≥83 | 687.2 | 95 | 70 | 25.3 |
| DZH4.2-1.25/95/70 | 4.2 | 1.25 | ≥83 | 1023.8 | 95 | 70 | 31 |
| DZH5.6-1.25/115/70 | 5.6 | 1.25 | ≥83 | 1374 | 115 | 70 | 34 |
| DZH7-1.25/115/70 | 7 | 1.25 | ≥83 | 1708 | 115 | 70 | 39 |
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q: What about the delivery time?
A: 5-10 working days for single machine, and 30-40 working days for bulk order and door to door delivery service is also available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q. What about the boiler fuel?
A: We provide boiler can use coal, charcoal, wood, rice husk, straw, biomass pellet, diesel, light oil, natural gas, city gas, liquefied gas etc.
